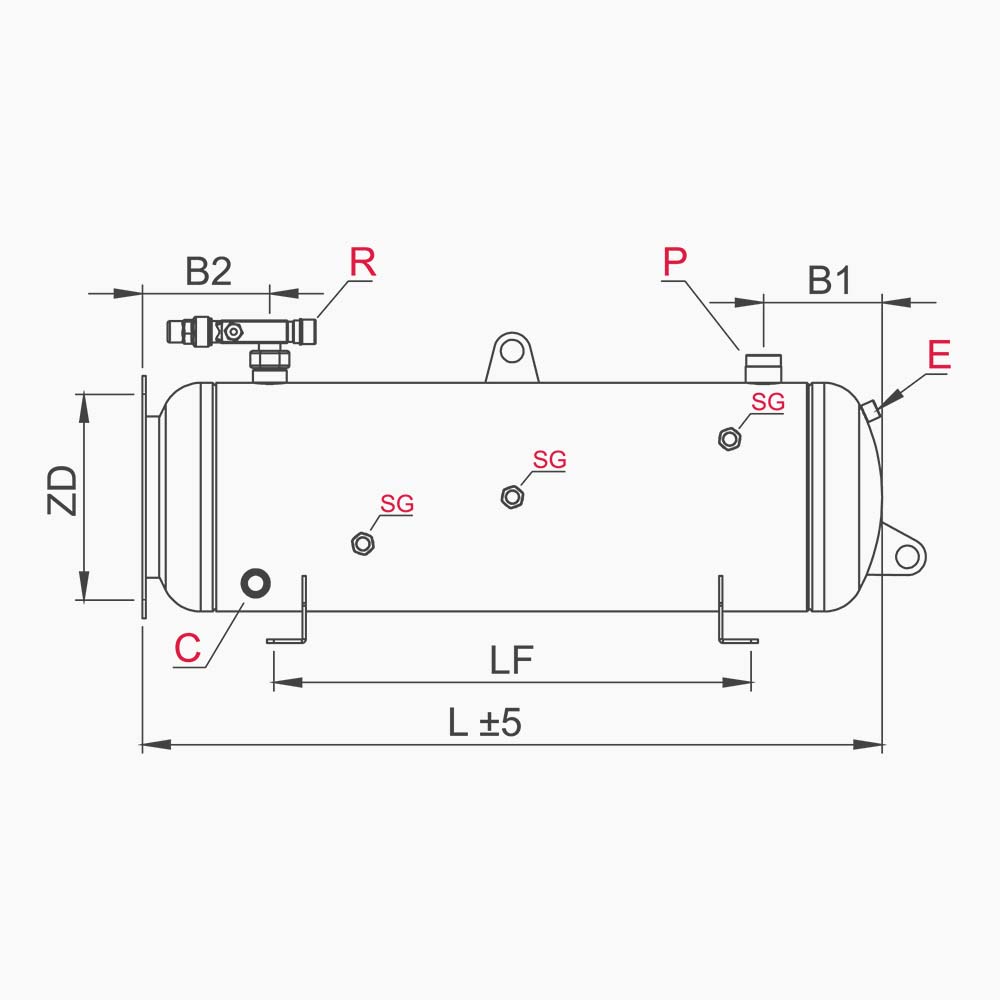

UNIVERSAL LIQUID RECEIVERS WITH VALVE

  • PInlet Connection (ODS)
  • ROutlet Connection (Rotalock Valve Connection)
  • ESafety Valve Connection
  • SGSight Glass
  • CLiquid Level Sensor Connection (Optional)
    • 33
    -20° , +120°C
    45
    -10° , +110°C
    sertifika-logo

    Technical
    Informations

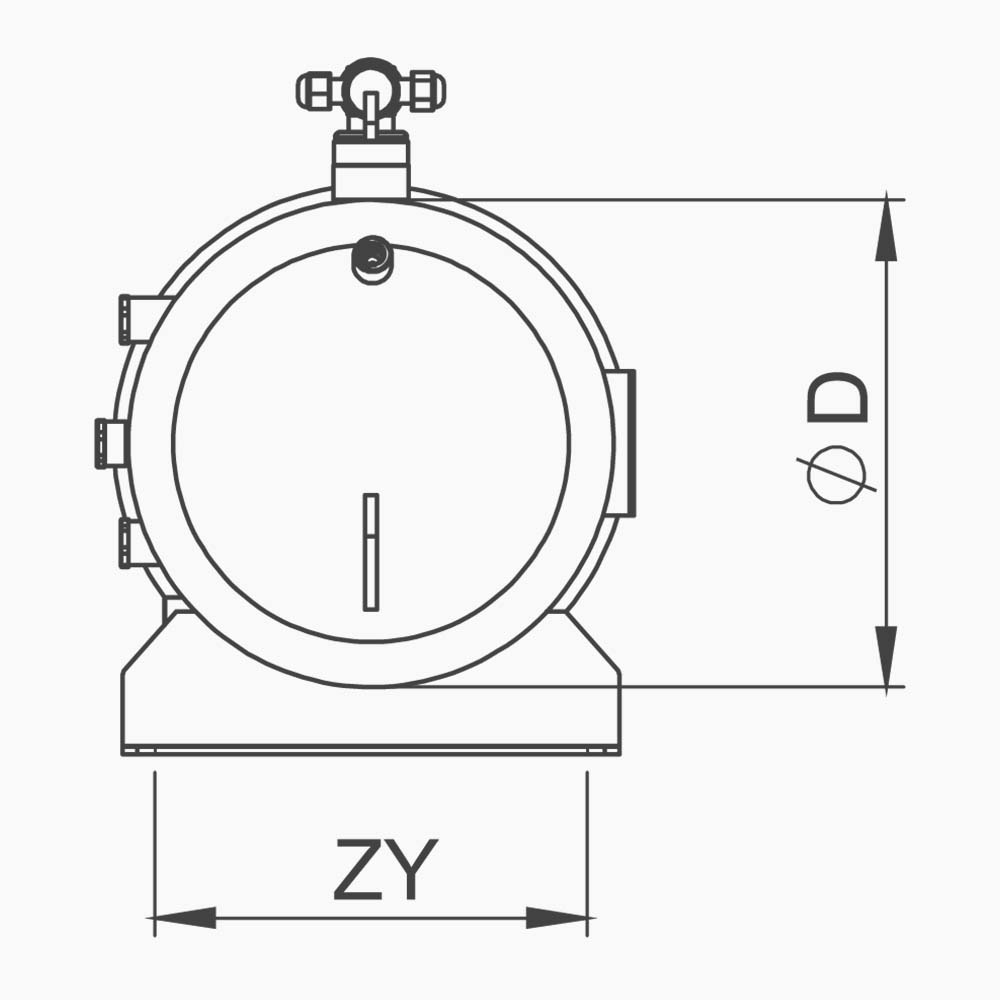

    CODEVOLUMEDIAMETERLENGTHINLETOUTLETLFB1B2ZDZYSIGHT GLASSSAFETY
    KOD LITER[mm] L [mm] ODS [mm] ROTALOCK VALVE [mm][mm][mm][mm][mm]SW36VALVE
    SULD25-OVE-1 1/8-1 1/4-D825Ø 2197751 1/8" - Ø 281 1/4"RV-1 1/8"1500130170200185SG31/2" NPT
    SULD30-OVE-1 1/8-1 1/4-D830Ø 2199151 1/8" - Ø 281 1/4"RV-1 1/8"650130170200185SG31/2" NPT
    SULD40-OVE-1 1/8-1 1/4-D840Ø 21912151 3/8" - Ø 351 3/4"RV-1 3/8"870130180200185SG31/2" NPT
    SULD40-OVE-1 3/8-1 3/4-D1040Ø 2738101 3/8" - Ø 351 3/4"RV-1 3/8"500160210250220SG31/2" NPT
    SULD40-OVE-1 3/8-1 3/4-D1050Ø 2739701 3/8" - Ø 351 3/4"RV-1 3/8"650160210250220SG31/2" NPT
    SULD60-OVE-1 5/8-1 3/4-D1060Ø 27312101 5/8" - Ø 421 3/4"RV-1 3/8"870160210250220SG31/2" NPT
    SULD70-OVE-1 5/8-1 3/4-D1070Ø 27313801 5/8" - Ø 421 3/4"RV-1 3/8"1080160210250220SG31/2" NPT
    SULD80-OVE-1 5/8-1 3/4-D1280Ø 32311201 5/8" - Ø 421 3/4"RV-1 3/8"740170225300340SG31/2" NPT
    SULD90-OVE-1 5/8-1 3/4-D1290Ø 32312401 5/8" - Ø 421 3/4"RV-1 3/8"870170225300340SG31/2" NPT
    SULD100-OVE-2 1/8-2 1/4-D12100Ø 32313902 1/8" - Ø 542 1/4"RV-2 1/8"1010190225300340SG31/2" NPT
    SULD130-OVE-2 1/8-2 1/4-D12130Ø 32317602 1/8" - Ø 542 1/4"RV-2 1/8"1390190225300340SG31/2" NPT
    SULD130-OVE-2 1/8-2 1/4-D16130Ø 40611552 1/8" - Ø 542 1/4"RV-2 1/8"725200225404420SG31/2" NPT
    SULD150-OVE-2 1/8-2 1/4-D16150Ø 40613352 1/8" - Ø 542 1/4"RV-2 1/8"900200225404420SG31/2" NPT
    SULD180-OVE-2 1/8-2 1/4-D16180Ø 40615702 1/8" - Ø 542 1/4"RV-2 1/8"1140200225404420SG31/2" NPT
    SULD200-OVE-2 1/8-2 1/4-D16200Ø 40617752 1/8" - Ø 542 1/4"RV-2 1/8"1340200225404420SG31/2" NPT
    SULD200-OVE-2 1/8-2 1/4-D20200Ø 50812052 1/8" - Ø 542 1/4"RV-2 1/8"710230265480520SG31/2" NPT
    SULD225-OVE-2 1/8-2 1/4-D20225Ø 50813402 1/8" - Ø 542 1/4"RV-2 1/8"850230265480520SG31/2" NPT
