NOZZLE DIMENSIONS

  • Nozzles & Retainer Rings Nozzles and rings may be ordered separately. Information required for nozzles is the outside size of the nozzle, which is designated by a letter, and a number which etermines the orifice size.

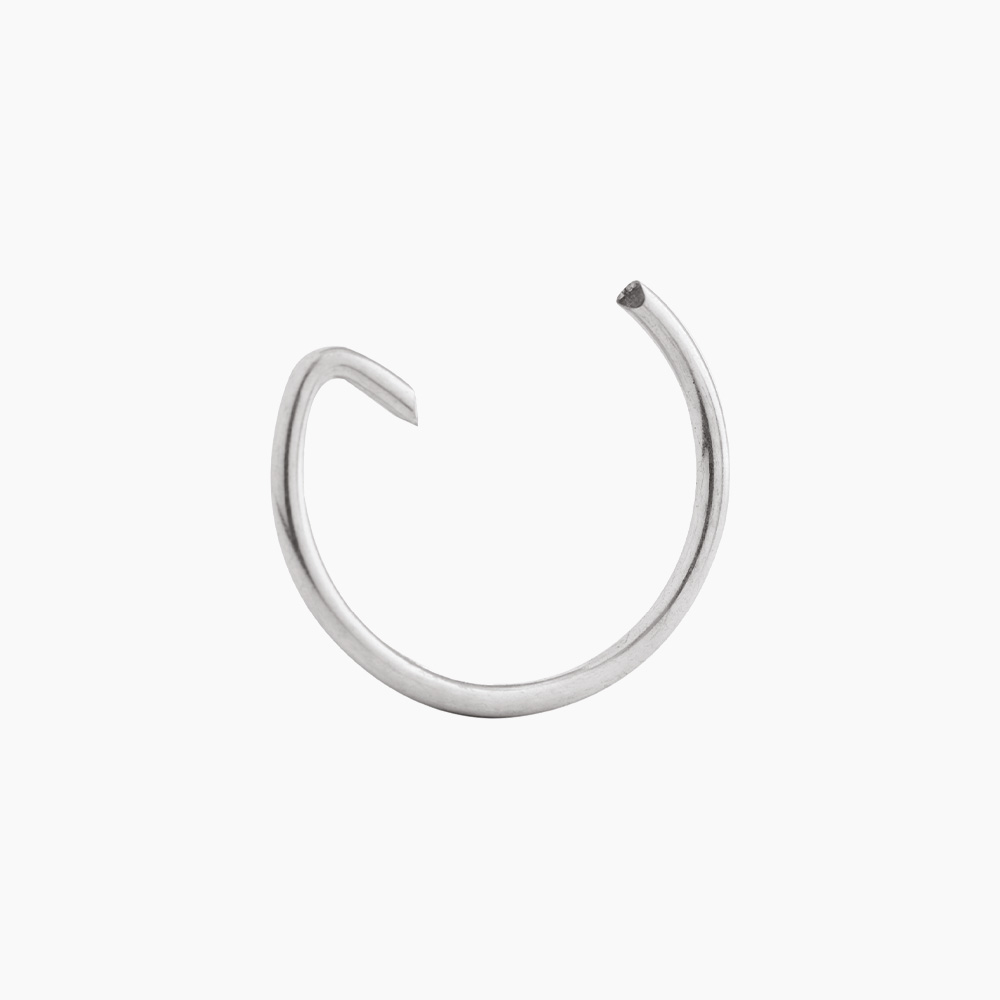

    Rings may be ordered with a letter corresponding to the nozzle. For example, “C” ring would go with a distributor body that takes an “C” nozzle.

    • Technical
    Informations

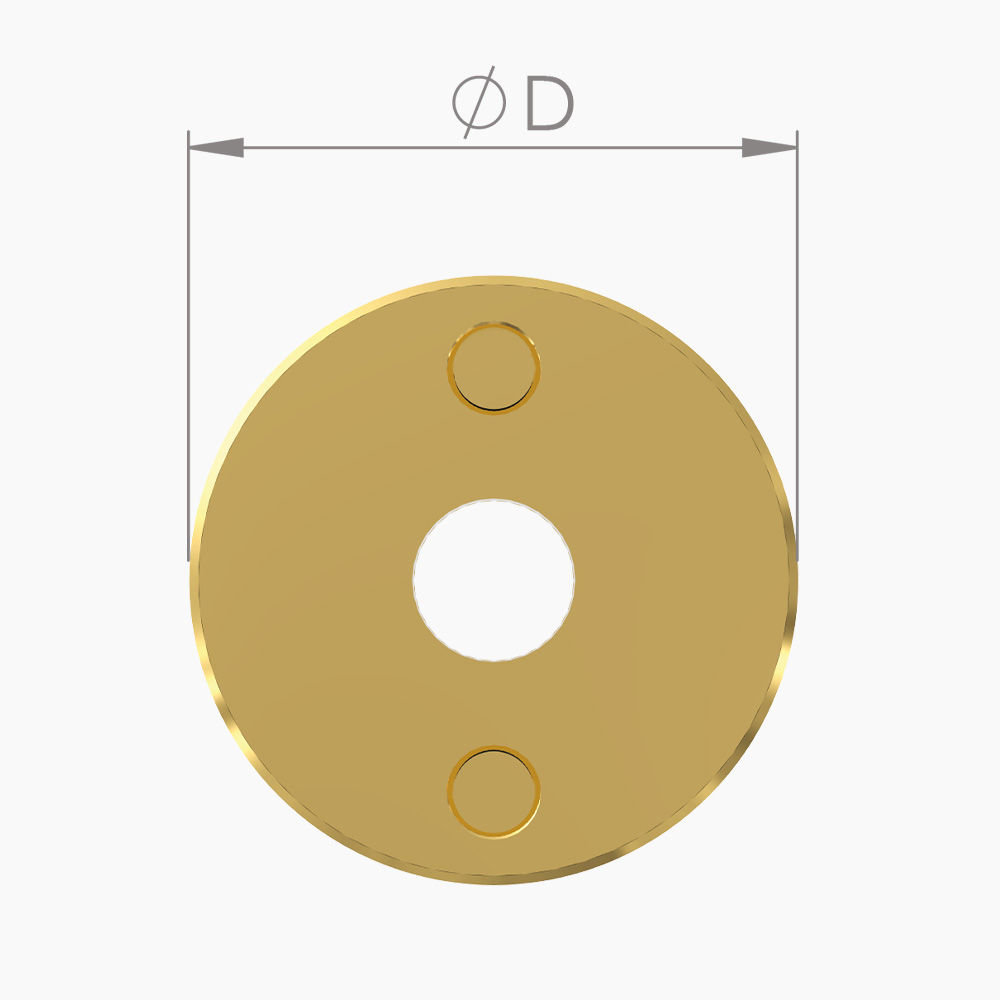

    ØDt
    L0.4010.187
    J0.4980.250
    G0.7350.250
    E1.0000.250
    C1.1200.250
    A1.3750.250
