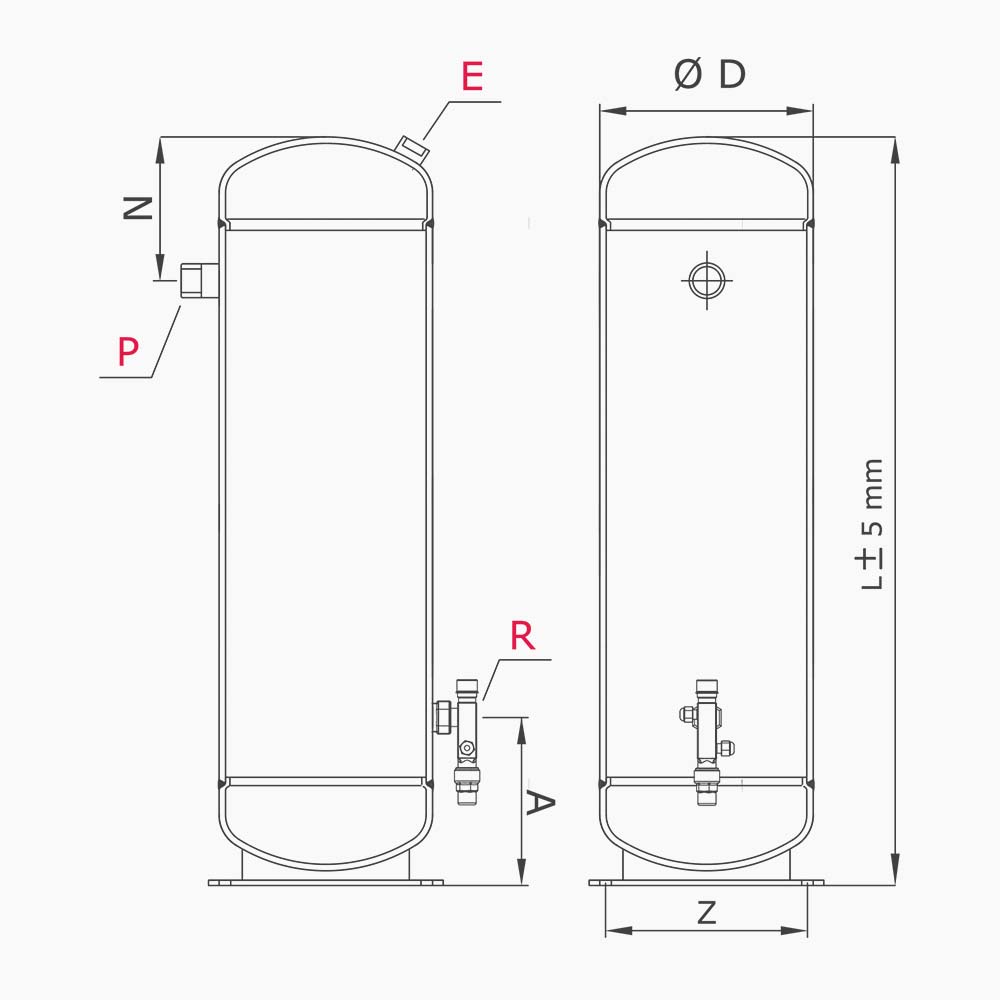

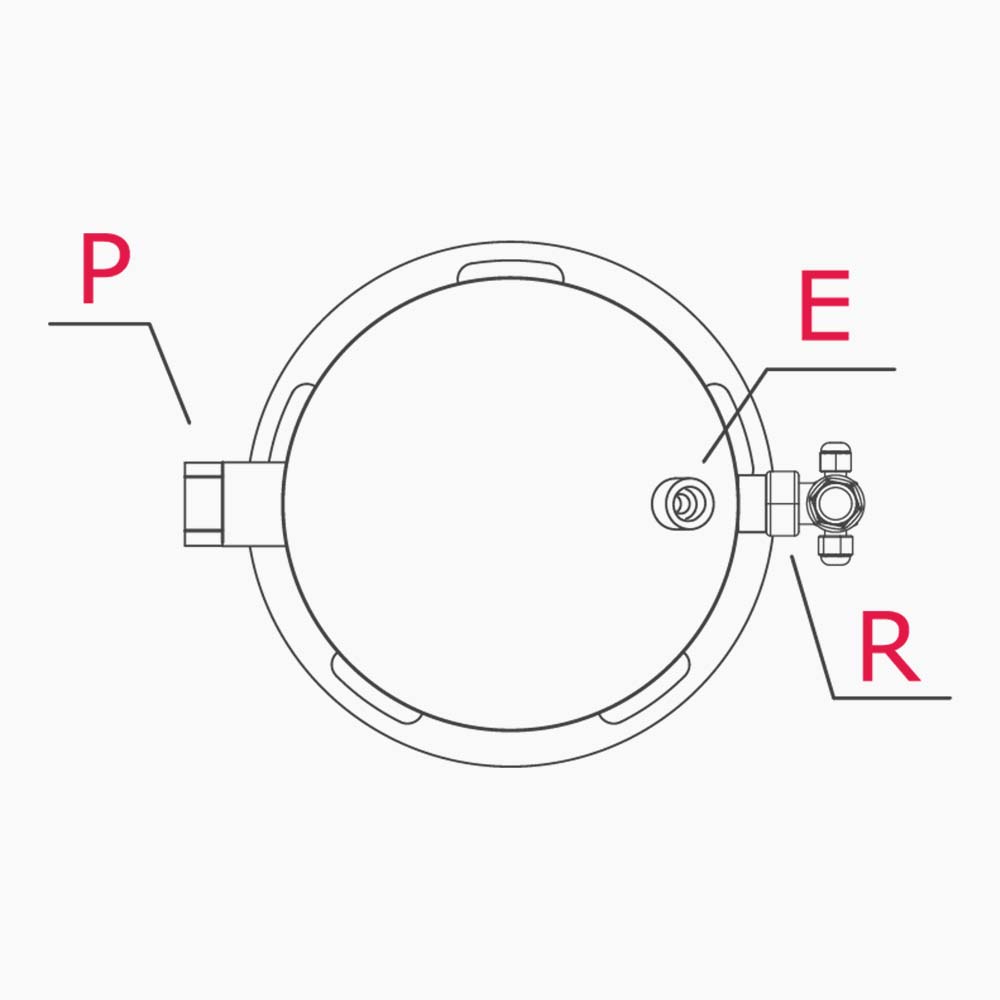

| CODE | VOLUME | DIAMETER | LENGTH | INLET | OUTLET | N | A | SAFETY | Z |
|---|---|---|---|---|---|---|---|---|---|
| KOD | LITER | [mm] | L [mm] | ODS [mm] | ROTALOCK VALVE | INLET | OUTLET | VALVE | [mm] |
| SDLD04-OV-3/8-1-D4 | 4 | Ø 114 | 470 | 3/8"- Ø 10 | 1"RV-3/8" | 60 mm | 130 mm | OPTION | 127 |
| SDLD04-OV-3/8-1-D5 | 4 | Ø 140 | 330 | 3/8"- Ø 10 | 1"RV-3/8" | 90 mm | 130 mm | OPTION | 127 |
| SDLD05-OV-1/2-1-D5 | 5 | Ø 140 | 390 | 1/2"- Ø 12 | 1"RV-1/2" | 90 mm | 130 mm | OPTION | 127 |
| SDLD06-OV-1/2-1-D5 | 6 | Ø 140 | 480 | 1/2"- Ø 12 | 1"RV-1/2" | 90 mm | 130 mm | OPTION | 127 |
| SDLD06-OV-1/2-1-D6 | 6 | 165 | 340 | 1/2"- Ø 12 | 1"RV-1/2" | 100 mm | 130 mm | OPTION | 127 |
| SDLD7,5-OV-1/2-1-D6 | 7,5 | 165 | 420 | 1/2"- Ø 12 | 1"RV-1/2" | 100 mm | 130 mm | OPTION | 127 |
| SDLD10-OV-5/8-1-D6 | 10 | 165 | 545 | 5/8"- Ø 16 | 1"RV-5/8" | 100 mm | 130 mm | OPTION | 127 |
| SDLD10-OV-5/8-1-D8 | 10 | Ø 219 | 345 | 5/8"- Ø 16 | 1"RV-5/8" | 120 mm | 140 mm | OPTION | 200 |
| SDLD13-OVE-5/8-1-D8 | 13 | Ø 219 | 420 | 5/8"- Ø 16 | 1"RV-5/8" | 120 mm | 140 mm | 1/2" NPT | 200 |
| SDLD15-OVE-5/8-1-D8 | 15 | Ø 219 | 485 | 5/8"- Ø 16 | 1"RV-5/8" | 120 mm | 140 mm | 1/2" NPT | 200 |
| SDLD16-OVE-5/8-1-D8 | 16 | Ø 219 | 505 | 5/8"- Ø 16 | 1"RV-5/8" | 120 mm | 140 mm | 1/2" NPT | 200 |
| SDLD18-OVE-5/8-1-D8 | 18 | Ø 219 | 565 | 3/4"- Ø 19 | 1"RV-5/8" | 125 mm | 140 mm | 1/2" NPT | 200 |
| SDLD20-OVE-7/8-1 1/4-D8 | 20 | Ø 219 | 625 | 7/8"- Ø 22 | 1 1/4"RV-7/8" | 125 mm | 170 mm | 1/2" NPT | 200 |
| SDLD25-OVE-1 1/8-1 1/4-D8 | 25 | Ø 219 | 775 | 1 1/8" - Ø 28 | 1 1/4"RV-1 1/8" | 130 mm | 170 mm | 1/2" NPT | 200 |
| SDLD30-OVE-1 1/8-1 1/4-D10 | 30 | Ø 273 | 600 | 1 1/8" - Ø 28 | 1 1/4"RV-1 1/8" | 155 mm | 210 mm | 1/2" NPT | 250 |
| SDLD40-OVE-1 3/8-1 3/4-D10 | 40 | Ø 273 | 810 | 1 3/8" - Ø 35 | 1 3/4"RV-1 3/8" | 160 mm | 210 mm | 1/2" NPT | 250 |
| SDLD50-OVE-1 3/8-1 3/4-D10 | 50 | Ø 273 | 970 | 1 3/8" - Ø 35 | 1 3/4"RV-1 3/8" | 160 mm | 210 mm | 1/2" NPT | 250 |
| SDLD60-OVE-1 5/8-1 3/4-D10 | 60 | Ø 273 | 1210 | 1 5/8" - Ø 42 | 1 3/4"RV-1 5/8" | 160 mm | 210 mm | 1/2" NPT | 250 |
| SDLD70-OVE-1 5/8-1 3/4-D10 | 70 | Ø 273 | 1380 | 1 5/8" - Ø 42 | 1 3/4"RV-1 5/8" | 160 mm | 210 mm | 1/2" NPT | 250 |
| SDLD80-OVE-1 5/8-1 3/4-D12 | 80 | Ø 323 | 1120 | 1 5/8" - Ø 42 | 1 3/4"RV-1 5/8" | 170 mm | 225 mm | 1/2" NPT | 300 |
