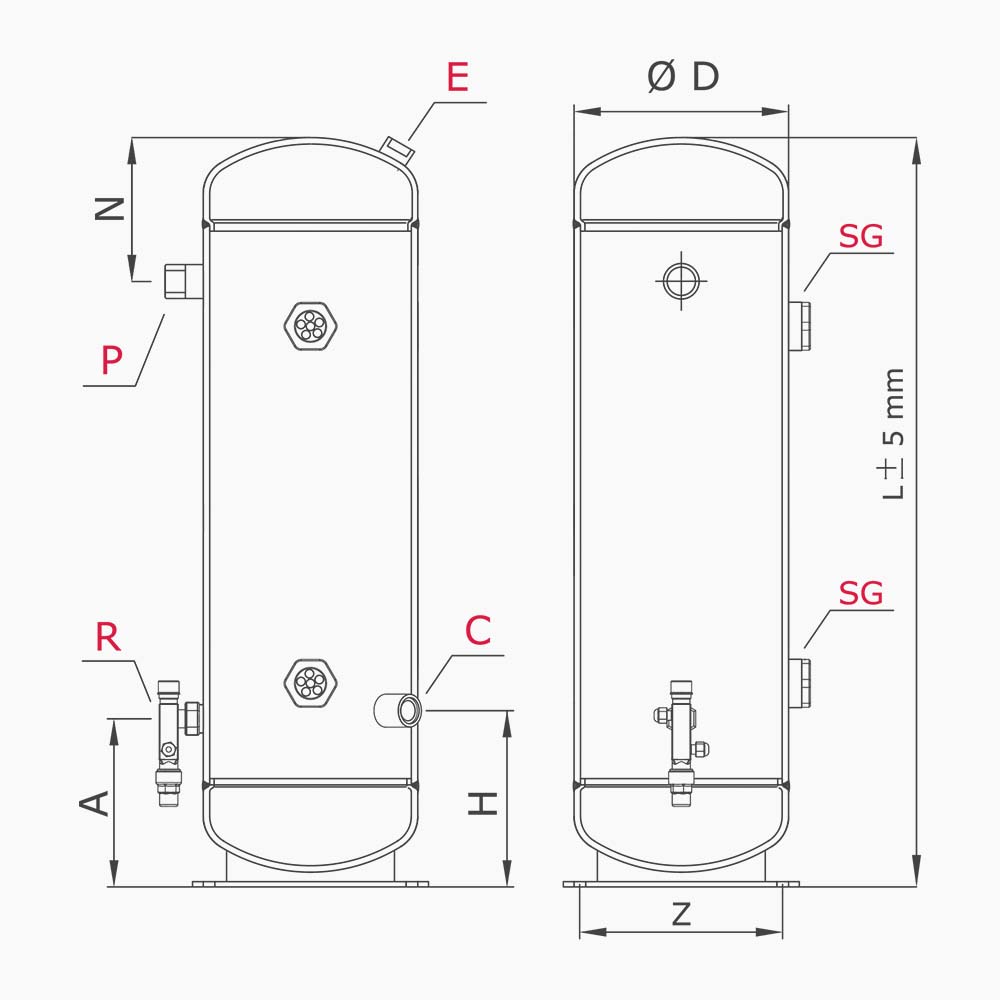

VERTICAL LIQUID RECEIVERS WITH VALVE AND SIGHT GLASSES

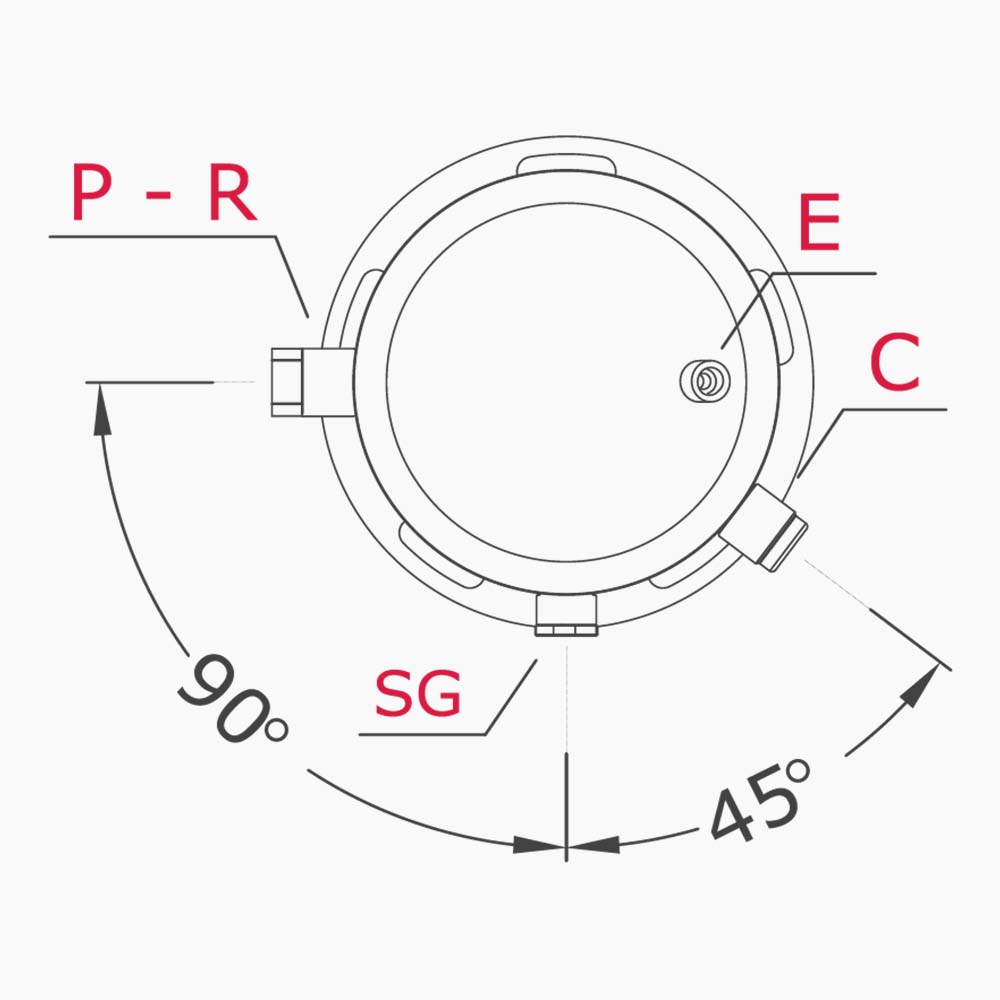

  • PInlet Connection (ODS)
  • ROutlet Connection (Rotalock Valve Connection)
  • ESafety Valve Connection
  • SGSight Glass
  • CLiquid Level Sensor Connection (Optional)
    • 33
    -20° , +120°C
    45
    -10° , +110°C
    sertifika-logo

    Technical
    Informations

    CODEVOLUMEDIAMETERLENGTHINLETOUTLETNASIGHT GLASSSAFETYZ
    KOD LITER[mm] L [mm] ODS [mm] ROTALOCK VALVE INLET OUTLET SW36VALVE [mm]
    SG1DLD04-OV-3/8-1-D44Ø 1144703/8"1"RV-3/8"60 mm130 mmSGx1X127
    SG1DLD04-OV-3/8-1-D54Ø 1403303/8"1"RV-3/8"90 mm130 mmSGx1X127
    SG1DLD05-OV-1/2-1-D55Ø 1403901/2"1"RV-1/2"90 mm130 mmSGx1X127
    SG1DLD06-OV-1/2-1-D56Ø 1404801/2"1"RV-1/2"90 mm130 mmSGx1X127
    SG1DLD06-OV-1/2-1-D66Ø 1653401/2"1"RV-1/2"100 mm130 mmSGx1X127
    SG1DLD7,5-OV-1/2-1-D67,5Ø 1654201/2"1"RV-1/2"100 mm130 mmSGx1X127
    SG1DLD10-OV-5/8-1-D610Ø 1655455/8"1"RV-5/8"100 mm130 mmSGx11/2" NPT127
    SG1DLD10-OV-5/8-1-D810Ø 2193455/8"1"RV-5/8"120 mm140 mmSGx11/2" NPT200
    SG1DLD13-OVE-5/8-1-D813Ø 2194205/8"1"RV-5/8"120 mm140 mmSGx11/2" NPT200
    SG2DLD15-OVE-5/8-1-D815Ø 2194855/8"1"RV-5/8"120 mm140 mmSGx21/2" NPT200
    SG2DLD16-OVE-5/8-1-D816Ø 2195055/8"1"RV-5/8"120 mm140 mmSGx21/2" NPT200
    SG2DLD18-OVE-3/4-1-D818Ø 2195653/4"1"RV-5/8"125 mm140 mmSGx21/2" NPT200
    SG2DLD20-OVE-7/8-1 1/4-D820Ø 2196257/8"1 1/4"RV-7/8"125 mm170 mmSGx21/2" NPT200
    SG2DLD25-OVE-1 1/8-1 1/4-D825Ø 2197751 1/8"1 1/4"RV-1 1/8"130 mm170 mmSGx21/2" NPT200
    SG2DLD30-OVE-1 1/8-1 1/4-D1030Ø 2736001 1/8"1 1/4"RV-1 1/8"155 mm210 mmSGx21/2" NPT250
    SG2DLD40-OVE-1 3/8-1 3/4-D1040Ø 2738101 3/8"1 3/4"RV-1 3/8"160 mm210 mmSGx21/2" NPT250
    SG2DLD50-OVE-1 3/8-1 3/4-D1050Ø 2739701 3/8"1 3/4"RV-1 3/8"160 mm210 mmSGx21/2" NPT250
    SG2DLD60-OVE-1 5/8-1 3/4-D1060Ø 27312101 5/8"1 3/4"RV-1 5/8"160 mm210 mmSGx21/2" NPT250
    SG2DLD70-OVE-1 5/8-1 3/4-D1070Ø 27313801 5/8"1 3/4"RV-1 5/8"160 mm210 mmSGx21/2" NPT250
    SG2DLD80-OVE-1 5/8-1 3/4-D1280Ø 32311201 5/8"1 3/4"RV-1 5/8"170 mm225 mmSGx21/2" NPT300
    SG2DLD90-OVE-1 5/8-1 3/4-D1290Ø 32312401 5/8"1 3/4"RV-1 5/8"170 mm225 mmSGx21/2" NPT300
    SG3DLD100-OVE-2 1/8-2 1/4-D12100Ø 32313902 1/8"2 1/4"RV-2 1/8"190 mm225 mmSGx31/2" NPT300
    SG3DLD130-OVE-2 1/8-2 1/4-D12130Ø 32317602 1/8"2 1/4"RV-2 1/8"190 mm225 mmSGx31/2" NPT300
    SG2DLD130-OVE-2 1/8-2 1/4-D16130Ø 40611552 1/8"2 1/4"RV-2 1/8"200 mm225 mmSGx21/2" NPT404
    SG3DLD150-OVE-2 1/8-2 1/4-D12150Ø 32320202 1/8"2 1/4"RV-2 1/8"190 mm225 mmSGx31/2" NPT300
    SG3DLD150-OVE-2 1/8-2 1/4-D16150Ø 40613352 1/8"2 1/4"RV-2 1/8"200 mm225 mmSGx31/2" NPT404
    SG3DLD180-OVE-2 1/8-2 1/4-D16180Ø 40615702 1/8"2 1/4"RV-2 1/8"200 mm225 mmSGx31/2" NPT404
    SG3DLD200-OVE-2 1/8-2 1/4-D16200Ø 40617752 1/8"2 1/4"RV-2 1/8"200 mm225 mmSGx31/2" NPT404
    SG3DLD200-OVE-2 1/8-2 1/4-D18200Ø 48012802 1/8"2 1/4"RV-2 1/8"220 mm245 mmSGx31/2" NPT460
    SG3DLD200-OVE-2 1/8-2 1/4-D20200Ø 50812052 1/8"2 1/4"RV-2 1/8"230 mm265 mmSGx31/2" NPT480
    SG3DLD225-OVE-2 1/8-2 1/4-D16225Ø 40620052 1/8"2 1/4"RV-2 1/8"200 mm225 mmSGx31/2" NPT404
    SG3DLD225-OVE-2 1/8-2 1/4-D18225Ø 48014302 1/8"2 1/4"RV-2 1/8"220 mm245 mmSGx31/2" NPT460
    SG3DLD225-OVE-2 1/8-2 1/4-D20225Ø 50813402 1/8"2 1/4"RV-2 1/8"230 mm265 mmSGx31/2" NPT480
    SG3DLD250-OVE-2 1/8-2 1/4-D18250Ø 48015702 1/8"2 1/4"RV-2 1/8"220245 mmSGx31/2" NPT460
    SG3DLD250-OVE-2 1/8-2 1/4-D20250Ø 50814752 1/8"2 1/4"RV-2 1/8"230 mm265 mmSGx31/2" NPT480
    SG3DLD300-OOE-2 5/8-2 5/8-D18300Ø 4801860ODS 66ODS 66260 mm290 mmSGx31/2" NPT460
    SG3DLD300-OOE-2 5/8-2 5/8-D20300Ø 5081750ODS 66ODS 66270 mm300 mmSGx31/2" NPT480
    SG3DLD350-OOE-3 1/8-3 1/8-D18350Ø 4802150ODS 80ODS 80270 mm300 mmSGx31/2" NPT460
    SG3DLD350-OOE-3 1/8-3 1/8-D20350Ø 5082015ODS 80ODS 80280 mm300 mmSGx31/2" NPT480
    SG3DLD400-OOE-3 1/8-3 1/8-D18400Ø 4802450ODS 80ODS 80270 mm300 mmSGx31/2" NPT460
    SG3DLD400-OOE-3 1/8-3 1/8-D20400Ø 5082285ODS 80ODS 80280 mm300 mmSGx31/2" NPT480
    SG3DLD450-OOE-3 1/8-3 1/8-D20450Ø 5082560ODS 80ODS 80280 mm300 mmSGx31/2" NPT480
    SG3DLD450-OOE-3 1/8-3 1/8-D24450Ø 6401610ODS 80ODS 80310 mm330 mmSGx31/2" NPT610
    SG3DLD500-OOE-3 5/8-3 5/8-D24500Ø 6401775ODS 92ODS 92310 mm330 mmSGx31/2" NPT610
    SG3DLD560-OOE-4 1/8-4 1/8-D24560Ø 6401975ODS 92ODS 105330 mm350 mmSGx31/2" NPT610
    SG3DLD600-OOE-4 1/8-4 1/8-D24600Ø 6402095ODS 92ODS 105330 mm350 mmSGx31/2" NPT610
