HORIZONTAL LIQUID RECEIVERS WITH VALVE AND SIGHT GLASSES

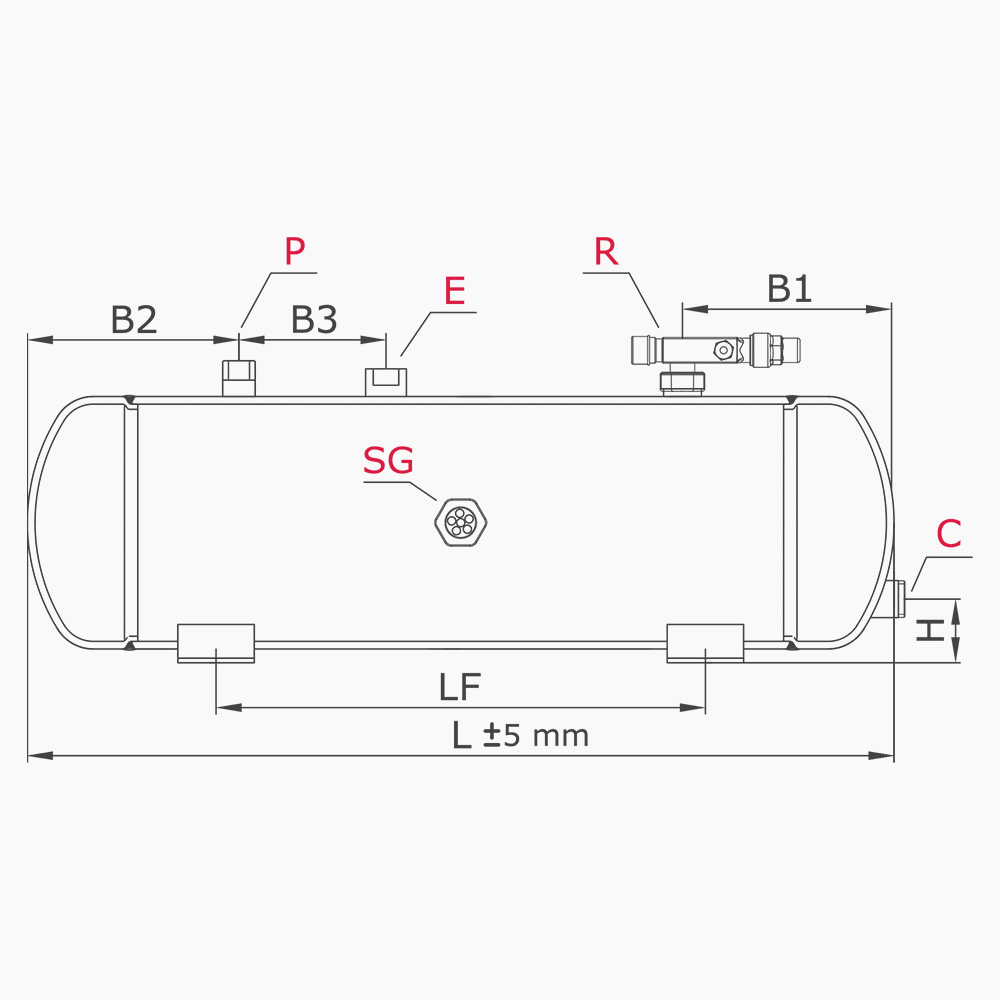

  • PInlet Connection (ODS)
  • ROutlet Connection (Rotalock Valve Connection)
  • ESafety Valve Connection
  • SGSight Glass
  • CLiquid Level Sensor Connection (Optional)
    • 33
    -20° , +120°C
    45
    -10° , +110°C
    sertifika-logo

    Technical
    Informations

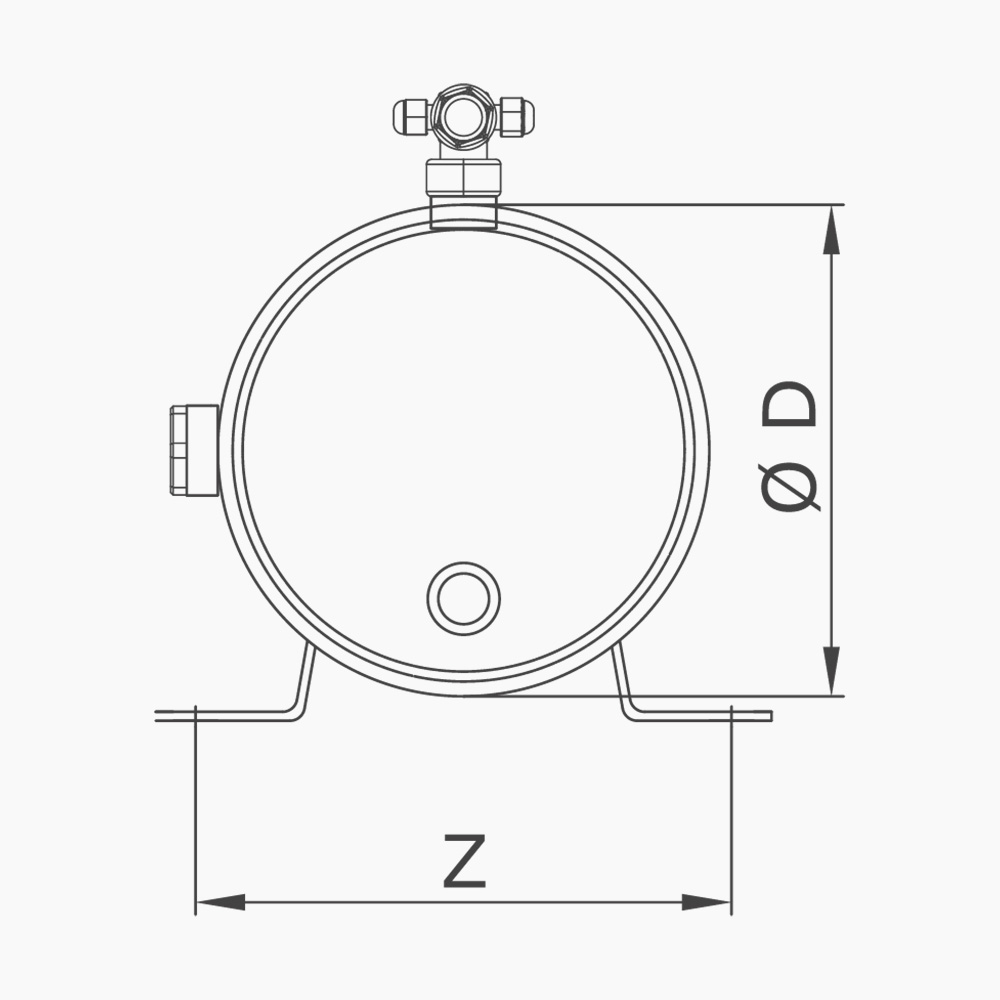

    CODEVOLUMEDIAMETERLENGTHINLETOUTLETLFB1B2 B3ZHSIGHT GLASSSAFETY
    KOD LITER[mm] L [mm] ODS ROTALOCK VALVE [mm][mm][mm][mm] [mm][mm]SW36SAFETY
    SG1YLD04-OV-3/8-1-D4 4Ø 1144553/8"1"RV-3/8"3006060140145XSGx1 X
    SG1YLD04-OV-3/8-1-D54Ø 1403153/8"1"RV-3/8"12010010060155XSGx1 X
    SG1YLD05-OV-1/2-1-D55Ø 1403751/2"1"RV-1/2"18010010090155XSGx1 X
    SG1YLD06-OV-1/2-1-D56Ø 1404651/2"1"RV-1/2" 270100100130155XSGx1 X
    SG1YLD06-OV-1/2-1-D6 6Ø 1653251/2"1"RV-1/2" 115 11011050185XSGx1 X
    SG1YLD7,5-OV-1/2-1-D6 7,5Ø 1654051/2"1"RV-1/2" 195 11011090 185XSGx1 X
    SG1YLD10-OV-5/8-1-D610Ø 1655305/8"1"RV-5/8" 320110110120185XSGx1 X
    SG1YLD10-OV-5/8-1-D8 10Ø 2193305/8"1"RV-5/8" 11012012050185XSGx1 X
    SG1YLD13-OVE-5/8-1-D813Ø 2194055/8"1"RV-5/8" 18512012080185XSGx1 1/2" NPT
    SG1YLD15-OVE-5/8-1-D815Ø 219470 5/8"1"RV-5/8" 250 120120120185XSGx1 1/2" NPT
    SG1YLD16-OVE-5/8-1-D816Ø 2194905/8"1"RV-5/8" 250 120120120185XSGx1 1/2" NPT
    SG1YLD18-OVE-3/4-1-D818Ø 219550 3/4"1"RV-5/8" 320120120120185XSGx1 1/2" NPT
    SG1YLD20-OVE-7/8-1 1/4-D8 20Ø 219610 7/8"1 1/4"RV-7/8"320130130150185XSGx1 1/2" NPT
    SG1YLD25-OVE-1 1/8-1 1/4-D825Ø 2197601 1/8"1 1/4"RV-1 1/8"50013013018018570SGx1 1/2" NPT
    SG1YLD30-OVE-1 1/8-1 1/4-D1030Ø 2735851 1/8"1 1/4"RV-1 1/8"265145145150220 90SGx1 1/2" NPT
    SG1YLD40-OVE-1 3/8-1 3/4-D1040Ø 273795 1 3/8"1 3/4"RV-1 3/8"475170 170 220220 90SGx1 1/2" NPT
    SG1YLD50-OVE-1 3/8-1 3/4-D1050Ø 2739551 3/8"1 3/4"RV-1 3/8"635170 170 220220 90SGx1 1/2" NPT
    SG1YLD60-OVE-1 5/8-1 3/4-D1060Ø 27311951 5/8"1 3/4"RV-1 3/8"875180180250220 90SGx1 1/2" NPT
    SG1YLD70-OVE-1 5/8-1 3/4-D10 70Ø 27313651 5/8"1 3/4"RV-1 3/8"1045180180250220 90SGx1 1/2" NPT
    SG2YLD80-OVE-1 5/8-1 3/4-D1280Ø 32311051 5/8"1 3/4"RV-1 3/8"745200200250340110 SGx21/2" NPT
    SG2YLD90-OVE-1 5/8-1 3/4-D1290Ø 32312251 5/8"1 3/4"RV-1 3/8"865200200300340110 SGx21/2" NPT
    SG2YLD100-OVE-2 1/8-2 1/4-D12100Ø 32313752 1/8"2 1/4"RV-2 1/8"1015 200200300340110 SGx21/2" NPT
    SG2YLD130-OVE-2 1/8-2 1/4-D12130Ø 32317452 1/8"2 1/4"RV-2 1/8"1385200200350340110 SGx21/2" NPT
    SG2YLD130-OVE-2 1/8-2 1/4-D16 130Ø 4061140 2 1/8"2 1/4"RV-2 1/8"725230 230 250420 130SGx21/2" NPT
    SG2YLD150-OVE-2 1/8-2 1/4-D12 150Ø 32320052 1/8"2 1/4"RV-2 1/8"1645200200400340110 SGx21/2" NPT
    SG2YLD150-OVE-2 1/8-2 1/4-D16150Ø 40613202 1/8"2 1/4"RV-2 1/8"900230230300420 130SGx21/2" NPT
    SG2YLD180-OVE-2 1/8-2 1/4-D16180Ø 40615552 1/8"2 1/4"RV-2 1/8"1140230230300420130SGx21/2" NPT
    SG2YLD200-OVE-2 1/8-2 1/4-D16 200Ø 40617602 1/8"2 1/4"RV-2 1/8"1340230230350420130SGx21/2" NPT
    SG2YLD200-OVE-2 1/8-2 1/4-D18200Ø 48012652 1/8"2 1/4"RV-2 1/8"810260260300490140SGx21/2" NPT
    SG3YLD200-OVE-2 1/8-2 1/4-D20200Ø 508 11902 1/8"2 1/4"RV-2 1/8"710290290260520150SGx31/2" NPT
    SG2YLD225-OVE-2 1/8-2 1/4-D16225Ø 406 19902 1/8"2 1/4"RV-2 1/8"1505230230400420130SGx21/2" NPT
    SG2YLD225-OVE-2 1/8-2 1/4-D18225Ø 48014152 1/8"2 1/4"RV-2 1/8"960260260300490140SGx21/2" NPT
    SG3YLD225-OVE-2 1/8-2 1/4-D20225Ø 50813252 1/8"2 1/4"RV-2 1/8"850 290 290 300520150SGx31/2" NPT
    SG2YLD250-OVE-2 1/8-2 1/4-D18250Ø 4801555 2 1/8"2 1/4"RV-2 1/8"1100260 260300490140SGx21/2" NPT
    SG3YLD250-OVE-2 1/8-2 1/4-D20250Ø 50814602 1/8"2 1/4"RV-2 1/8"985290290300520150SGx31/2" NPT
    SG2YLD300-OOE-2 5/8-2 5/8-D18300Ø 4801845ODS 66ODS 66 1400260260400490140SGx21/2" NPT
    SG3YLD300-OOE-2 5/8-2 5/8-D20300Ø 5081735ODS 66ODS 66 1260290290350520150SGx31/2" NPT
    SG2YLD350-OOE-3 1/8-3 1/8-D18350Ø 4802135ODS 80ODS 801690 280280400490140SGx21/2" NPT
    SG3YLD350-OOE-3 1/8-3 1/8-D20 350Ø 5082000ODS 80ODS 801525 310310400520150SGx3 1/2" NPT
    SG2YLD400-OOE-3 1/8-3 1/8-D18400Ø 4802435ODS 80ODS 801985280280500490140SGx21/2" NPT
    SG3YLD400-OOE-3 1/8-3 1/8-D20400Ø 5082270ODS 80ODS 801795310310500520150SGx31/2" NPT
    SG3YLD450-OOE-3 1/8-3 1/8-D20450Ø 5082545 ODS 80ODS 802070310310500520150SGx31/2" NPT
    SG3YLD450-OOE-3 1/8-3 1/8-D24450Ø 6401595 ODS 80ODS 801070360360300660 175SGx31/2" NPT
    SG3YLD500-OOE-3 5/8-3 5/8-D24500Ø 6401760ODS 92ODS 921235 370370350660 175SGx31/2" NPT
    SG3YLD560-OOE-4 1/8-4 1/8-D24560Ø 6401960ODS 105ODS 1051435380 380 400660 175SGx31/2" NPT
    SG3YLD600-OOE-4 1/8-4 1/8-D24600Ø 6402080ODS 105 ODS 1051555380 380 450660 175SGx31/2" NPT
