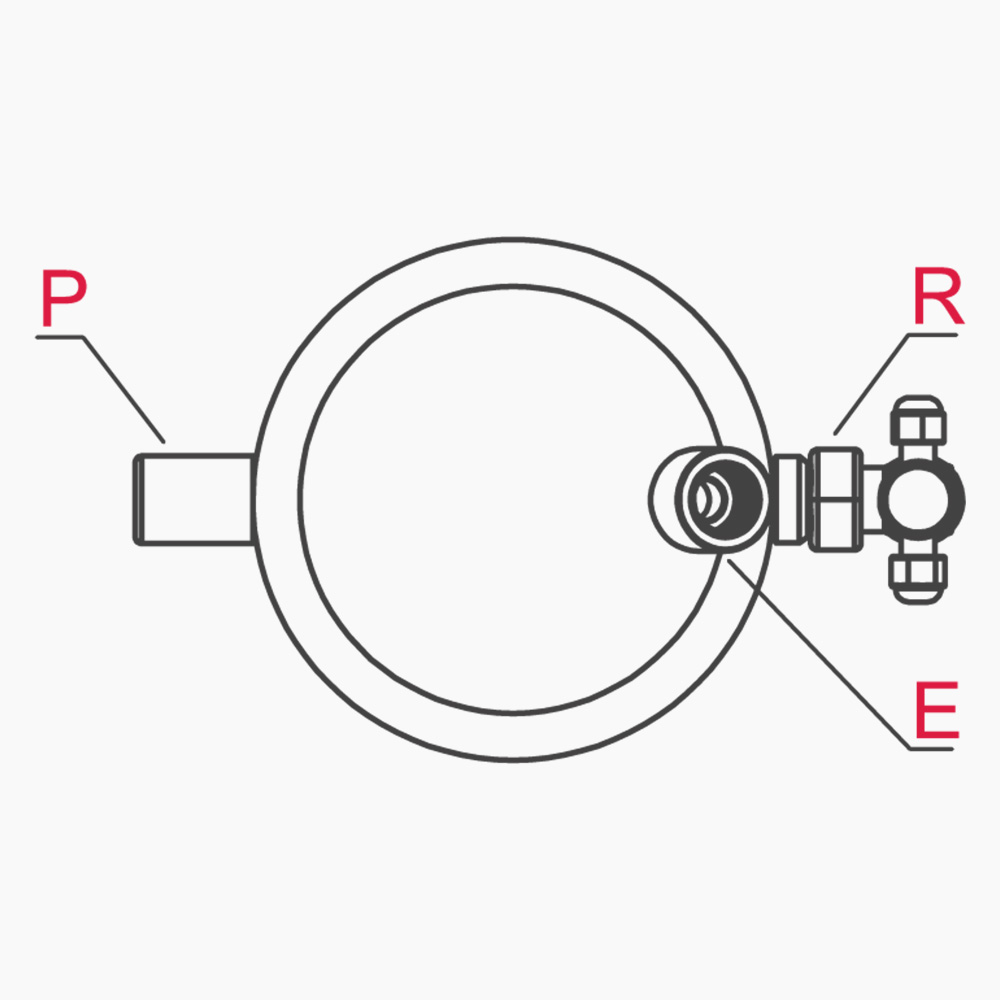

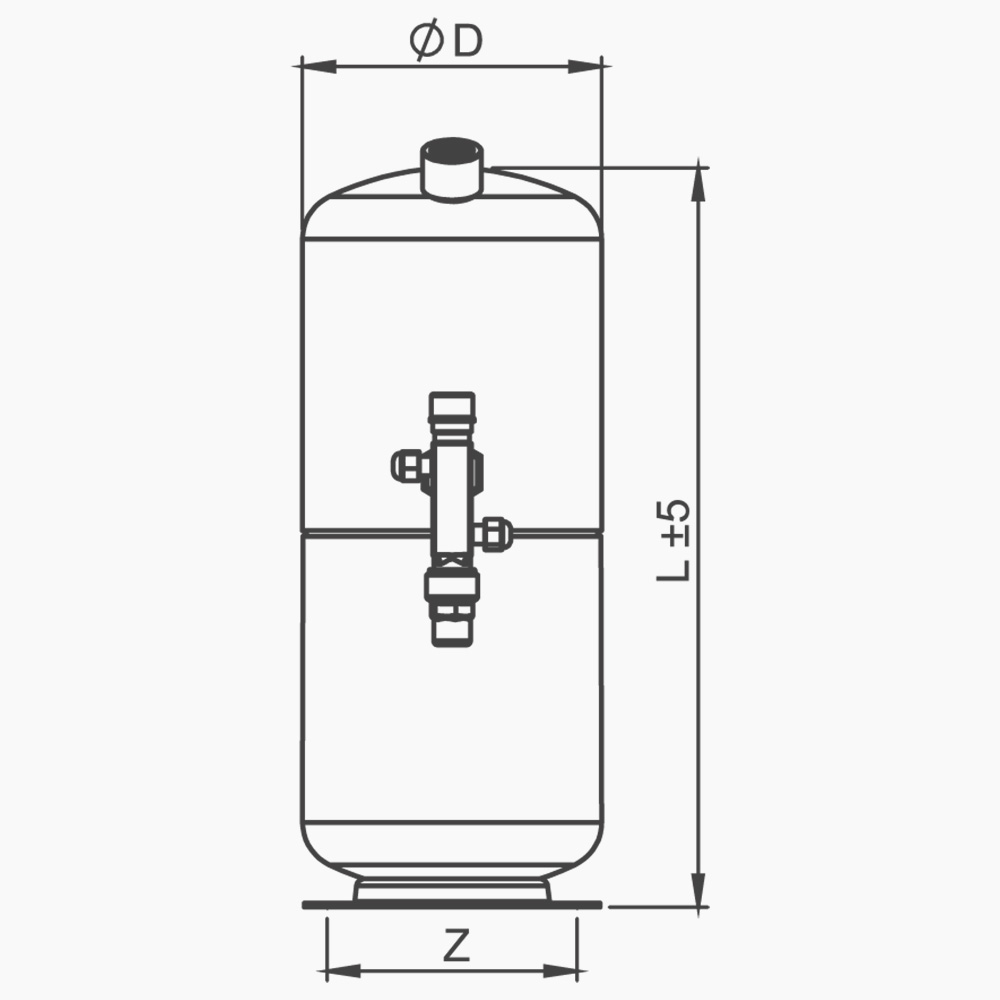

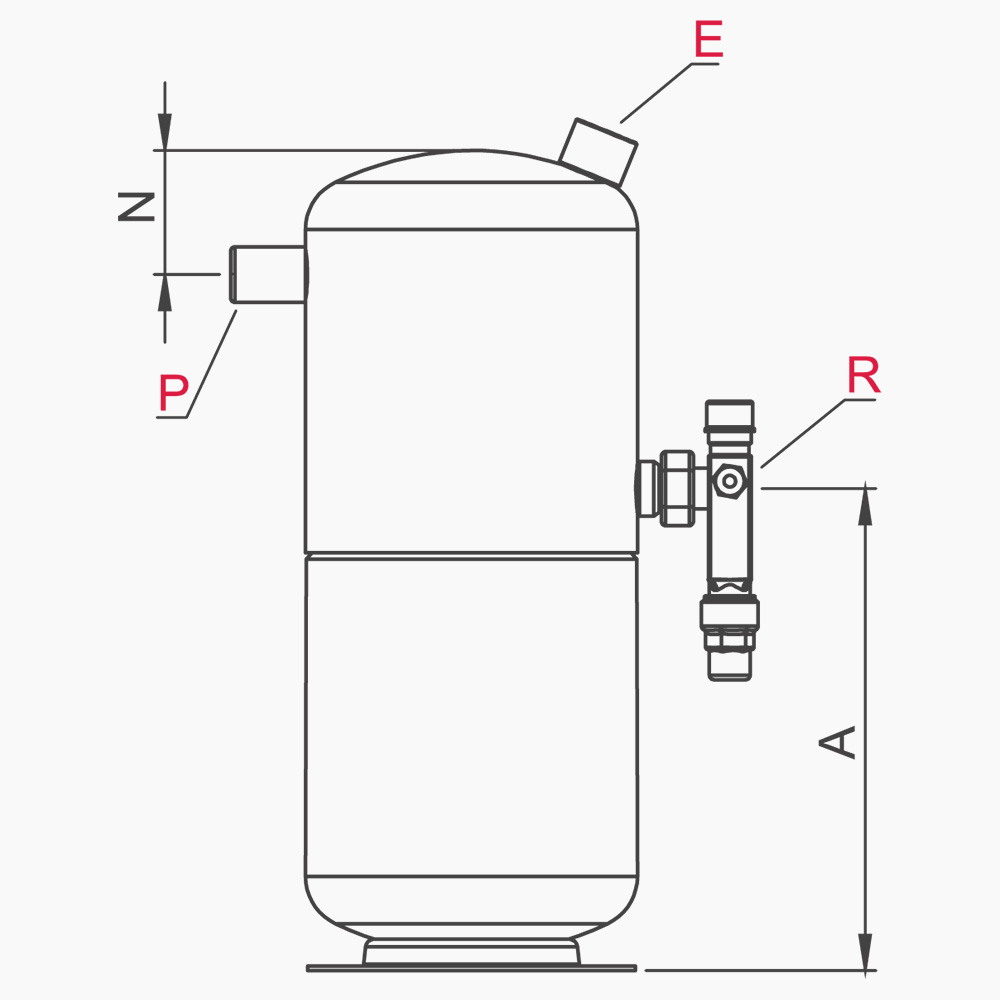

| CODE | VOLUME | DIAMETER | LENGTH | INLET | OUTLET | N | A | Z | SAFETY |
|---|---|---|---|---|---|---|---|---|---|
| KOD | LITER | [mm] | L [mm] | ODS [mm] | ROTALOCK VALVE | [mm] | [mm] | [mm] | VALVE |
| SDSLD01-OV-1/4"-1"RV | 1 | Ø 89 | 225 | 1/4" - Ø 6 | 1"RV-1/4" | 55 | 120 | M10 | OPTION |
| SDSLD01-OV-3/8"-1"RV | 1 | Ø 89 | 225 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 120 | M10 | OPTION |
| SDSLD02-H-OV-3/8"-1"RV | 2 | Ø 114 | 245 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 115 | 127 | OPTION |
| SDSLD02-S-OV-3/8"-1"RV | 2 | Ø 130 | 205 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 140 | 127 | OPTION |
| SDSLD03-S-OV-3/8"-1"RV | 3 | Ø 155 | 215 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 145 | 127 | OPTION |
| SDSLD03-H-OV-3/8"-1"RV | 3 | Ø 130 | 280 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 175 | 127 | OPTION |
| SDSLD04-S-OV-3/8"-1"RV | 4 | Ø 155 | 265 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 165 | 127 | OPTION |
| SDSLD04-H-OV-3/8"-1"RV | 4 | Ø 130 | 370 | 3/8" - Ø 10 | 1"RV-3/8" | 55 | 240 | 127 | OPTION |
| SDSLD05-OV-1/2"-1"RV | 5 | Ø 155 | 320 | 1/2" - Ø 12 | 1"RV-1/2" | 55 | 190 | 127 | OPTION |
| SDSLD06-H-OV-1/2"-1"RV | 6 | Ø 155 | 380 | 1/2" - Ø 12 | 1"RV-1/2" | 55 | 240 | 127 | OPTION |
| SDSLD06-S-OV-1/2"-1"RV | 6 | Ø 185 | 290 | 1/2" - Ø 12 | 1"RV-1/2" | 65 | 180 | 145 | OPTION |
| SDSLD07-OV-1/2"-1"RV | 7 | Ø 185 | 330 | 1/2" - Ø 12 | 1"RV-1/2" | 65 | 200 | 145 | OPTION |
| SDSLD08-OV-1/2"-1"RV | 8 | Ø 185 | 370 | 1/2" - Ø 12 | 1"RV-1/2" | 65 | 220 | 145 | OPTION |
| SDSLD10-OV-5/8"-1"RV | 10 | Ø 185 | 450 | 5/8" - Ø 16 | 1"RV-5/8" | 65 | 260 | 145 | OPTION |
| SDSLD12-OVE-5/8"-1"RV | 12 | Ø 219 | 375 | 5/8" - Ø 16 | 1"RV-5/8" | 70 | 220 | 200 | 1/2" NPT |
| SDSLD13-OVE-5/8"-1"RV | 13 | Ø 219 | 405 | 5/8" - Ø 16 | 1"RV-5/8" | 70 | 240 | 200 | 1/2" NPT |
| SDSLD15-OVE-5/8"-1"RV | 15 | Ø 219 | 465 | 5/8" - Ø 16 | 1"RV-5/8" | 70 | 140 | 200 | 1/2" NPT |
| SDSLD16-OVE-5/8"-1"RV | 16 | Ø 219 | 495 | 5/8" - Ø 16 | 1"RV-5/8" | 70 | 140 | 200 | 1/2" NPT |
| SDSLD18-OVE-3/4"-1"RV | 18 | Ø 219 | 550 | 3/4" - Ø 19 | 1"RV-5/8" | 75 | 140 | 200 | 1/2" NPT |
| SDSLD18-S-OVE-3/4"-1"RV | 18 | Ø 260 | 400 | 3/4" - Ø 19 | 1"RV-5/8" | 75 | 250 | 225 | 1/2" NPT |
| SDSLD20-OVE-7/8"-1 1/4"RV | 20 | Ø 260 | 450 | 7/8" - Ø 22 | 1 1/4"RV-7/8" | 75 | 150 | 225 | 1/2" NPT |
