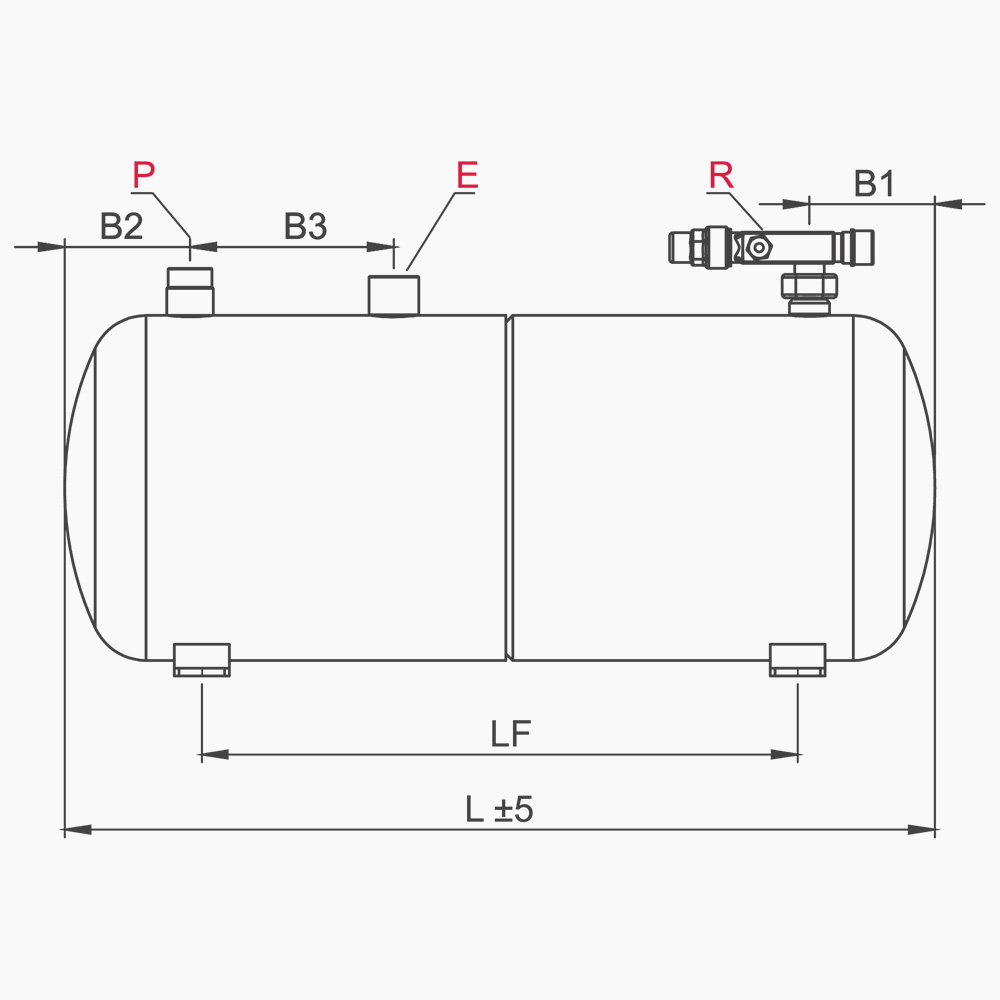

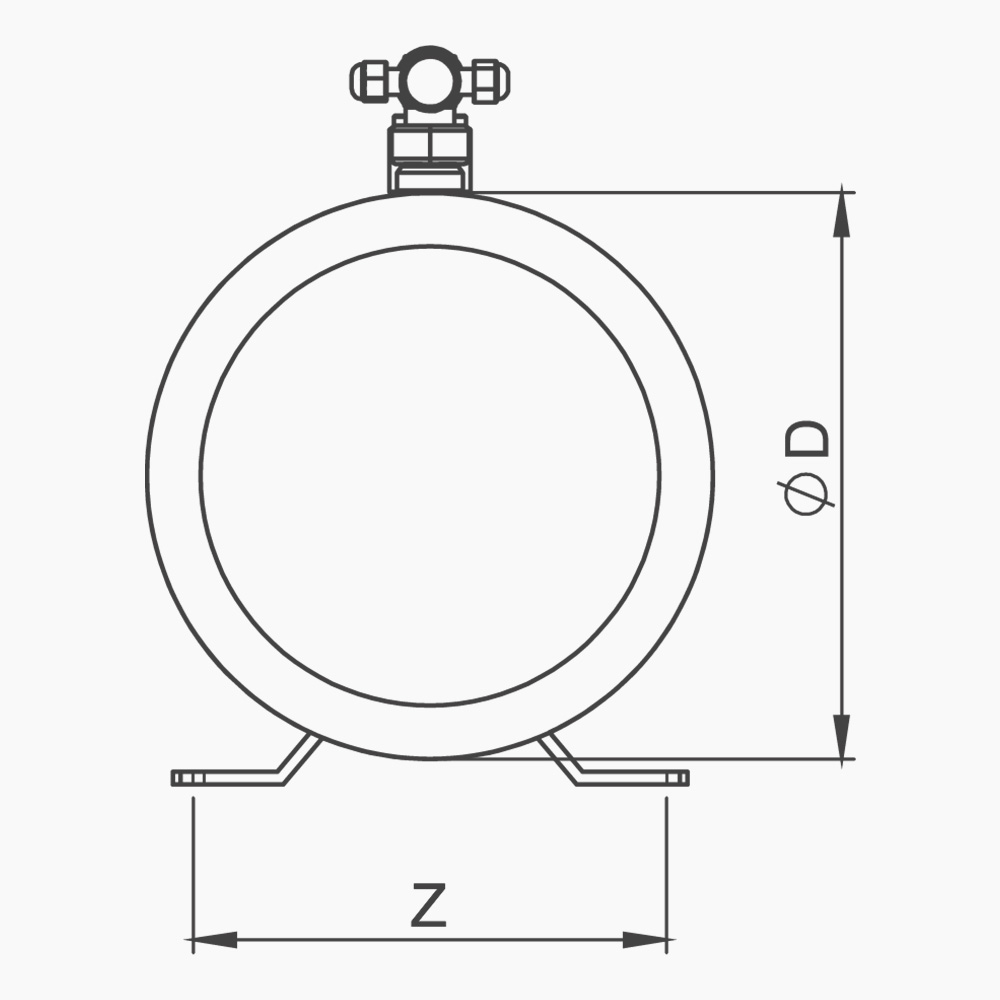

| CODE | VOLUME | DIAMETER | LENGTH | INLET | OUTLET | LF | B1 | B2 | B3 | Z | SAFETY |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KOD | LITER | Ø [mm] | L [mm] | ODS [mm] | ROTALOCK VALVE | [mm] | [mm] | [mm] | [mm] | [mm] | VALVE |
| SYSLD01-OV-1/4"-1"RV | 1 | Ø 89 | 215 | 1/4" - Ø 6 | 1"RV-1/4" | 80 | 65 | 65 | X | 120 | OPTION |
| SYSLD01-OV-3/8"-1"RV | 1 | Ø 89 | 215 | 3/8" - Ø 10 | 1"RV-3/8" | 80 | 65 | 65 | X | 120 | OPTION |
| SYSLD02-H-OV-3/8"-1"RV | 2 | Ø 114 | 235 | 3/8" - Ø 10 | 1"RV-3/8" | 110 | 65 | 65 | X | 145 | OPTION |
| SYSLD02-S-OV-3/8"-1"RV | 2 | Ø 130 | 195 | 3/8" - Ø 10 | 1"RV-3/8" | 75 | 65 | 65 | X | 145 | OPTION |
| SYSLD03-S-OV-3/8"-1"RV | 3 | Ø 155 | 205 | 3/8" - Ø 10 | 1"RV-3/8" | 75 | 65 | 65 | X | 170 | OPTION |
| SYSLD03-H-OV-3/8"-1"RV | 3 | Ø 130 | 270 | 3/8" - Ø 10 | 1"RV-3/8" | 140 | 65 | 65 | X | 145 | OPTION |
| SYSLD04-S-OV-3/8"-1"RV | 4 | Ø 155 | 255 | 3/8" - Ø 10 | 1"RV-3/8" | 125 | 65 | 65 | X | 170 | OPTIONOPTION |
| SYSLD04-H-OV-3/8"-1"RV | 4 | Ø 130 | 360 | 3/8" - Ø 10 | 1"RV-3/8" | 230 | 65 | 65 | X | 145 | |
| SYSLD05-OV-1/2"-1"RV | 5 | Ø 155 | 310 | 1/2" - Ø 12 | 1"RV-1/2" | 180 | 65 | 65 | X | 170 | OPTION |
| SYSLD06-H-OV-1/2"-1"RV | 6 | Ø 155 | 370 | 1/2" - Ø 12 | 1"RV-1/2" | 240 | 65 | 65 | X | 170 | OPTION |
| SYSLD06-S-OV-1/2"-1"RV | 6 | Ø 185 | 280 | 1/2" - Ø 12 | 1"RV-1/2" | 140 | 75 | 75 | X | 170 | OPTION |
| SYSLD07-OV-1/2"-1"RV | 7 | Ø 185 | 320 | 1/2" - Ø 12 | 1"RV-1/2" | 180 | 75 | 75 | X | 170 | OPTION |
| SYSLD08-OV-1/2"-1"RV | 8 | Ø 185 | 360 | 1/2" - Ø 12 | 1"RV-1/2" | 220 | 75 | 75 | X | 170 | OPTION |
| SYSLD10-OV-5/8"-1"RV | 10 | Ø 185 | 440 | 5/8" - Ø 16 | 1"RV-5/8" | 300 | 75 | 75 | X | 170 | OPTION |
| SYSLD12-OVE-5/8"-1"RV | 12 | Ø 219 | 365 | 5/8" - Ø 16 | 1"RV-5/8" | 205 | 80 | 80 | 100 | 185 | 1/2" NPT |
| SYSLD13-OVE-5/8"-1"RV | 13 | Ø 219 | 395 | 5/8" - Ø 16 | 1"RV-5/8" | 235 | 80 | 80 | 100 | 185 | 1/2" NPT |
| SYSLD15-OVE-5/8"-1"RV | 15 | Ø 219 | 455 | 5/8" - Ø 16 | 1"RV-5/8" | 295 | 80 | 80 | 125 | 185 | 1/2" NPT |
| SYSLD16-OVE-5/8"-1"RV | 16 | Ø 219 | 485 | 5/8" - Ø 16 | 1"RV-5/8" | 325 | 80 | 80 | 125 | 185 | 1/2" NPT |
| SYSLD18-H-OVE-3/4"-1"RV | 18 | Ø 219 | 540 | 3/4" - Ø 19 | 1"RV-5/8" | 380 | 85 | 85 | 125 | 185 | 1/2" NPT |
| SYSLD18-S-OVE-3/4"-1"RV | 18 | Ø 260 | 395 | 3/4" - Ø 19 | 1"RV-5/8" | 225 | 85 | 85 | 100 | 220 | 1/2" NPT1/2" NPT |
| SYSLD20-OVE-7/8"-1 1/4"RV | 20 | Ø 260 | 440 | 7/8" - Ø 22 | 1 1/4"RV-7/8 | 270 | 85 | 85 | 125 | 220 |
